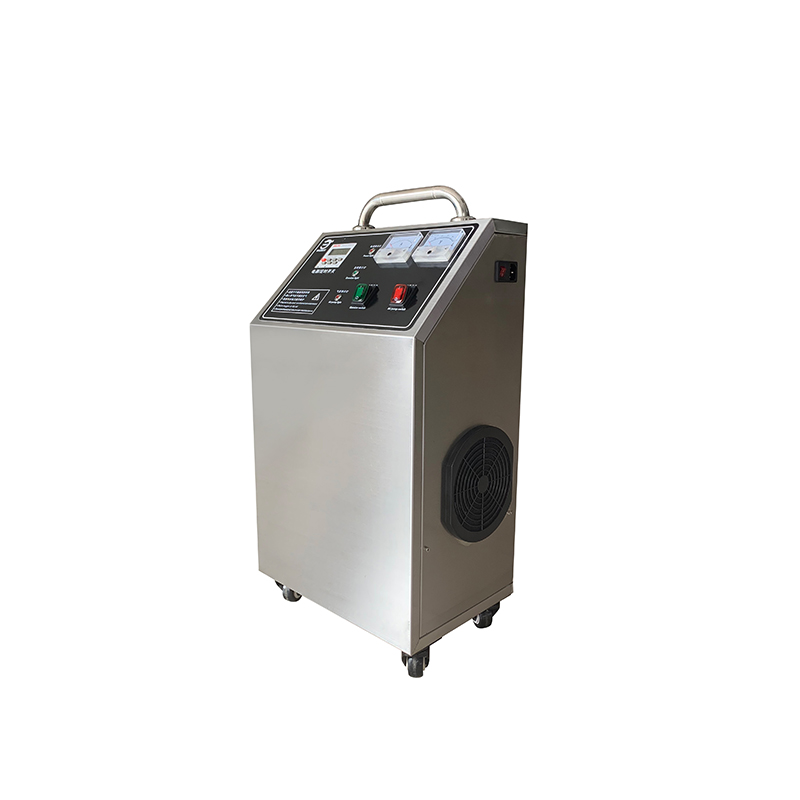

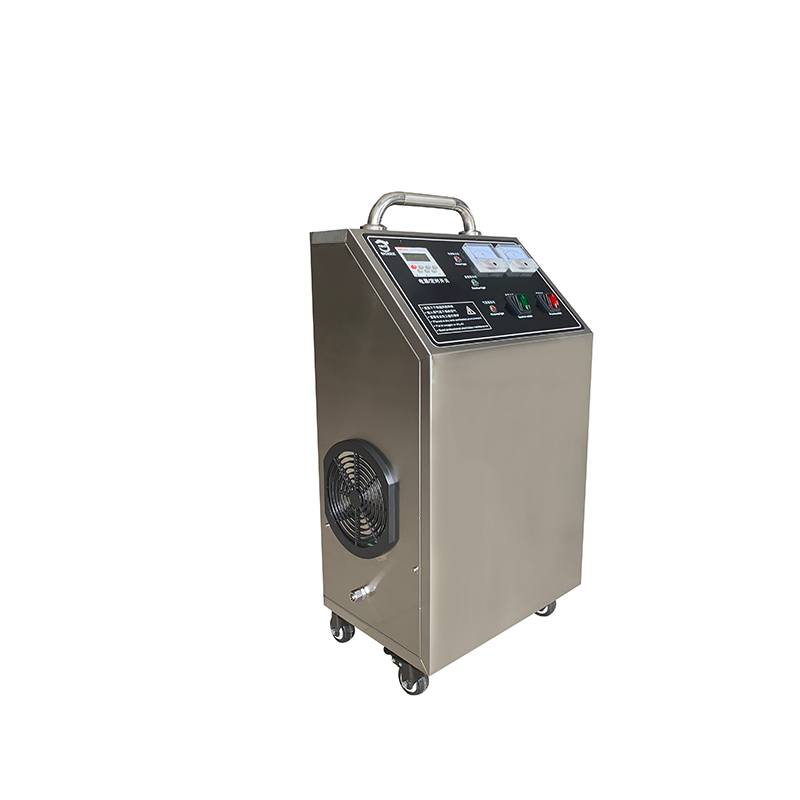

Name: Small Air Source Ozone Generator

．Ozone Generator Technical Parameters

VI. Product Features

1. High Voltage Discharge Type Generator

    This type of ozone generator uses a high-frequency power system to cause an electrochemical reaction in oxygen molecules within or around the electric field, thereby producing ozone. This ozone generator has the advantages of mature technology, stable operation, long service life, and large ozone output, making it the most widely used ozone generator in related industries both domestically and internationally.
2. Ozone Safe Cooling Method

The ozone generator generates a large amount of heat during operation and requires cooling; otherwise, ozone will decompose as fast as it is generated due to high temperatures.

3. Ozone Generator Discharge Technology

    Quartz tubes are most commonly used in high-performance ozone generators due to their high dielectric constant, uniform wall thickness, good ovality, high temperature resistance, and moisture resistance. Ceramic plates are brittle and prone to cracking, only suitable for some small generators. The wall thickness and ovality of ceramic tubes are difficult to control, prone to uneven discharge, so they are not widely used. Glass tubes and enameled tubes have low dielectric constants, poor high-temperature resistance, and are prone to cracking.

4. Working Principle

When a gas containing oxygen passes through the discharge gap between two electrodes, some oxygen molecules (O2) are converted into ozone (O3), achieving ozone production. When a varying high voltage is applied to the high-voltage electrode, micro-discharges occur in the discharge gap between the electrodes. Oxygen molecules are decomposed into free oxygen atoms O. Some free oxygen atoms recombine with undecomposed oxygen molecules to form ozone (O3), i.e., O + O2 = O3. This is called "corona discharge" or "silent discharge".

In fact, only a portion of the electrical energy applied to the electrodes is used to produce ozone. Heat is simultaneously generated during the production process, requiring effective cooling of the ozone generation module via a fan.

5. Ozone Process Flow

    The ozone generator system consists of: gas source system, ozone generator host.

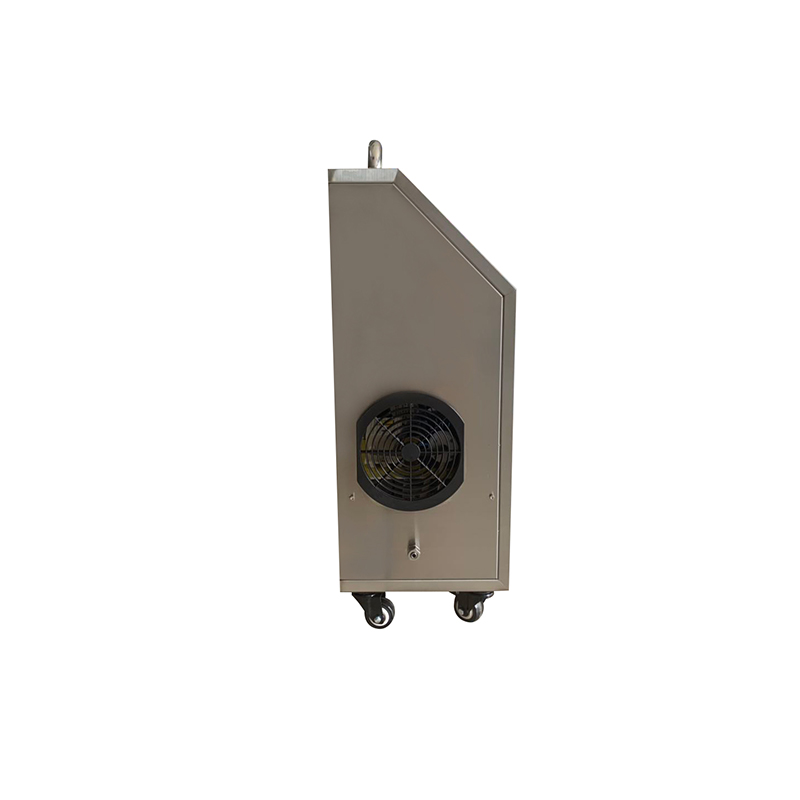

6. This product uses dual ball bearing high-power fans, high speed and large air volume ensure good heat dissipation for internal heating elements, low ozone concentration attenuation rate. Even after prolonged use, it ensures sufficient ozone output and concentration compliance.

7. Ozone is a broad-spectrum sterilant, with strong killing effects on various bacteria and viruses. The generated ozone gas has strong oxidation and catalytic effects. Viruses and bacteria in ozone gas are subjected to the action of various free radicals, causing protein denaturation and dissociation, and reducing the activity of nucleic acids and enzymes, thereby disinfecting, sterilizing, and purifying air. Ozone undergoes degradation, oxidation, and other complex physical and chemical reactions with toxic and harmful gases such as formaldehyde, carbon dioxide, xylene, etc. The by-products are non-toxic and harmless, avoiding secondary pollution.

VII. Product Applications

1.  Air Purification (Place the outlet pipe where purification is needed)

(1) Hotel room disinfection, car disinfection, office disinfection

(2) Production workshop sterilization and disinfection, bed sheet disinfection, ward disinfection, school disinfection

(3) Preventing bacterial infection in mushroom and fungus cultivation

(4) Food processing plant sterilization and preservation, odor removal

(5) VOC waste gas treatment, effect superior to photolysis

2.   Water Treatment (Water aeration mixing / Injector mixing / Gas-liquid mixing pump mixing)

(1) Tableware, drinkware, tea ware disinfection for restaurants, canteens, hotels, etc.

(2) Raw water treatment, tap water treatment, wastewater and sewage treatment

(3) Laundry water to avoid bacterial infection

(4) Floor spraying, mopping, and cleaning

(5) High-difficulty wastewater treatment, decolorization, COD degradation

(6) Dyeing factory wastewater treatment decolorization

VIII. Sterilization Capability

Ozone has extremely strong oxidizing properties and is recognized worldwide as a broad-spectrum, highly effective bactericide. Its oxidizing power is higher than chlorine. In water, its sterilization is 600-3000 times faster than chlorine, even killing bacteria within seconds. For common bacteria such as E. coli, fecal streptococcus, Pseudomonas aeruginosa, Staphylococcus aureus, molds, etc., in an environment with ozone concentration maintained at 0.3 PPM for 5 minutes, the killing rate can reach over 99%. Its sterilization and disinfection effects are almost instantaneous. When the ozone concentration in water reaches 0.3-2mg/L, bacteria can be killed within 0.5-1min. The ozone water dosage required to achieve the same sterilization effect (e.g., 99% kill rate for E. coli) is only 0.0048% of that of chlorine.
