Name: Air Source Water Cooling

Ozone Generator

I.Picture

II.

Technical parameters of ozone generator

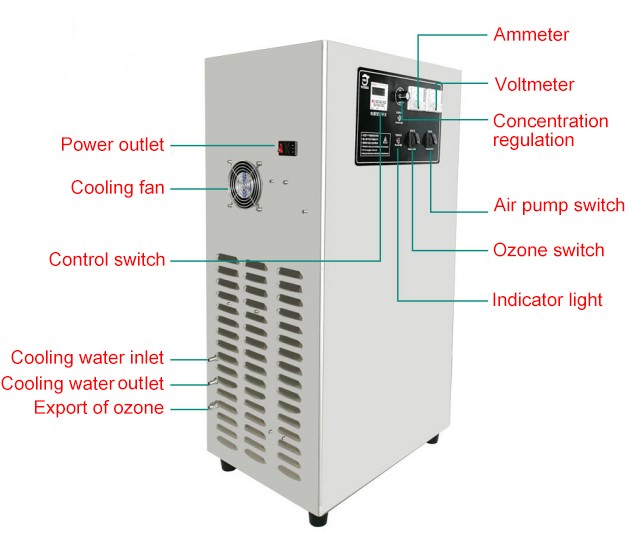

V. Product construction (technical advantages of configuration)

1. ozone tube: high purity dehydroxy quartz tube, Dehydroxylation less than 10 ppm, Above 98% SiO2, Temperature 1600 degrees, 30 KV, Pressure Far higher than the matching high frequency high voltage power output peak high voltage 7 KV, Will not be destroyed by high voltage breakdown. Electrode :316 L stainless steel tube, Cr17Ni12Mo2,022 Corrosion resistance is better than 304 stainless steel, In the case of high voltage, high frequency, continuous discharge, Use 5 years will not be oxidized black rust deformation; Discharge gap :0.5 MM; Head material: PVDF material plug with fluorine rubber ring, Antioxidant, acid - resistant, The service life can reach 8 years.

2. high frequency and high voltage power supply: rectifier frequency conversion circuit, high voltage package consists of ferrite core, polyester imide / polyamide imide composite layer enamelled wire, epoxy high temperature glue vacuum seal, with open circuit protection, over-current protection, short circuit protection, high voltage frequency 3-20 KHZ, output sinusoidal wave shape, the power factor can reach 0.97.

VI. Product characteristics

1. High Voltage Discharge Generator

This kind of ozone generator uses high frequency power supply system to make oxygen molecules in or around electric field react electrochemically to make ozone. The ozone generator has the advantages of mature technology, stable work, long service life and large ozone production, so it is the most widely used ozone generator in related industries at home and abroad.
2. Ozone Safe Cooling Mode

Ozone generator will produce a lot of heat energy, need cooling, otherwise ozone will be due to high temperature while producing decomposition. The cooling effect of the water-cooled generator is good, the work is stable, the ozone does not decay, and it can work continuously for a long time.

3. Ozone Generator Discharge Technology

The quartz tube is used by some high performance ozone generators because of its high dielectric constant, uniform wall thickness, good ellipticity, high temperature resistance and moisture resistance. Ceramic plate is easy to brittle, only suitable for some small generators. The wall thickness and ellipticity of ceramic tube are not easy to control, and the discharge is uneven, so it is not used much. Low dielectric constant of glass tube and enamel tube, poor resistance to high temperature, easy to crack

4. working principles

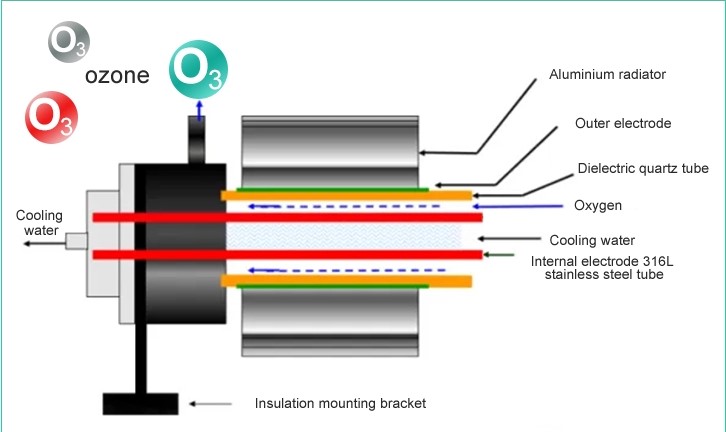

When oxygen-containing gases pass through the discharge gap between the two electrodes, some oxygen molecules (O2) are converted to ozone (O3) to achieve ozone preparation (see figure 1). When there is a variable high voltage on the high voltage electrode, there will be a micro discharge at the discharge gap between the electrodes. Oxygen molecules are decomposed into free oxygen atoms O, part of the free oxygen atoms recombine with unbroken oxygen molecules to form ozone (O3), which is called O+O2=O3," corona discharge "or" silent discharge ".

In fact, only a part of the electric energy applied to the electrode is used to prepare ozone, which also produces heat during the preparation process. It is necessary to cool the ozone generation module effectively by cooling water. The ozone preparation process is significantly affected by the quality of raw gas and the temperature of cooling water. The lower the temperature, the higher the ozone preparation efficiency.

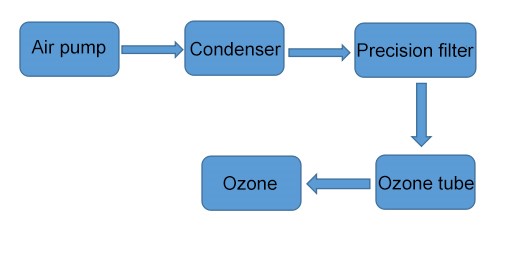

5. ozone process

Ozone generator system includes: gas source system, ozone generator mainframe.

6. this product adopts double ball bearing violent fan, high speed and large air volume to ensure that the internal heating element of the machine has good heat dissipation, low ozone concentration attenuation rate, long time use can still ensure sufficient ozone production and concentration up to standard.

7. ozone is a broad-spectrum bactericidal, all kinds of bacteria and viruses have a strong killing effect. The production of ozone gas has strong oxidation, catalysis and other effects, viruses and bacteria in ozone gas due to the action of a variety of free radicals, protein dissociation denaturation, nucleic acid and enzyme activity reduced, thus disinfection sterilization and purification of air; ozone and formaldehyde, carbon dioxide, xylene and other toxic and harmful gases degradation, oxidation and other complex physical and chemical reactions, and by-products non-toxic harmless, can avoid secondary pollution.

VII. Product uses

Clean the air (place the outlet pipe where it needs to be cleaned)

Disinfection of hotel rooms, car and office

(2) Sterilization and disinfection of production workshops, bed sheets, wards and schools

(3) Cultivation of mushroom fungi to prevent bacterial infection

(4) Sterilize and keep fresh in food processing plant, remove odour

(5) VOC waste gas treatment, the effect is better than photolysis

Water treatment (water aeration mixing / jet mixing / gas-liquid mixing pump mixing)

（1）Dining room, dining room, hotel and other tableware, drinking utensils, tea set cleaning and disinfection

（2）Raw water treatment, tap water treatment, wastewater treatment

（3）Laundry water to avoid germs

（4）Ground spray mop cleaning

（5）High difficulty wastewater treatment, decolorization, degradation COD

（6）Wastewater treatment and decolorization

VIII. Sterilization capacity

ozone has extremely strong oxidation, is recognized as a broad-spectrum high-efficiency bactericide worldwide, its oxidation ability is higher than chlorine, sterilization in water is 600-3000 times faster than chlorine, even a few seconds can kill bacteria, for common e. coli, streptococcus faecalis, Pseudomonas aeruginosa, Staphylococcus aureus, mold and so on, in the ozone concentration of 0.3 PPM environment for 5 minutes, its killing rate can reach more than 99%. The sterilization and disinfection effect is almost instantaneous, when the ozone concentration in water reaches 0.3-2 mg/L ,0.5-1 min can kill bacteria. The amount of ozone water needed to achieve the same sterilization effect (such as 99% killing rate of Escherichia coli) is only 0.0048% of chlorine.
