Technical parameters

-----------------------------------------------------------------------------

Name :50 G/H Ozone generator fittings (power supply + ozone tube)

Model: FW-50G

Operating voltage: AC220V/50HZ

Power :20-450 W adjustable

Cooling mode: water cooling

Supply: Dry and clean oxygen or air

Ozone production :50 G/H

Ozone concentration: oxygen source 80-120 mg/L; air source 8-15 mg/L

Air intake :10 L/min oxygen    Air 75-80 L/min

Working environment temperature :-7~45℃

 Working environment humidity :≤85% RH

Shape Size: Ozone tube size (length * width * height):680*120*120 mm Power Size :250*135*85 mm

Net weight: KG .3.7 for ozone tubes Electricity ,2 KG

Cooling water inlet :4 external teeth

Cooling water outlet :4 external teeth

Air intake :2 external teeth

Ozone export :2 external teeth

mounting dimensions: power mounting hole spacing: power mounting hole spacing :115*210 mm, aperture :φ4.5mm.:

Ozone tube mounting hole spacing :540*45 mm, aperture :φ5.2mm:

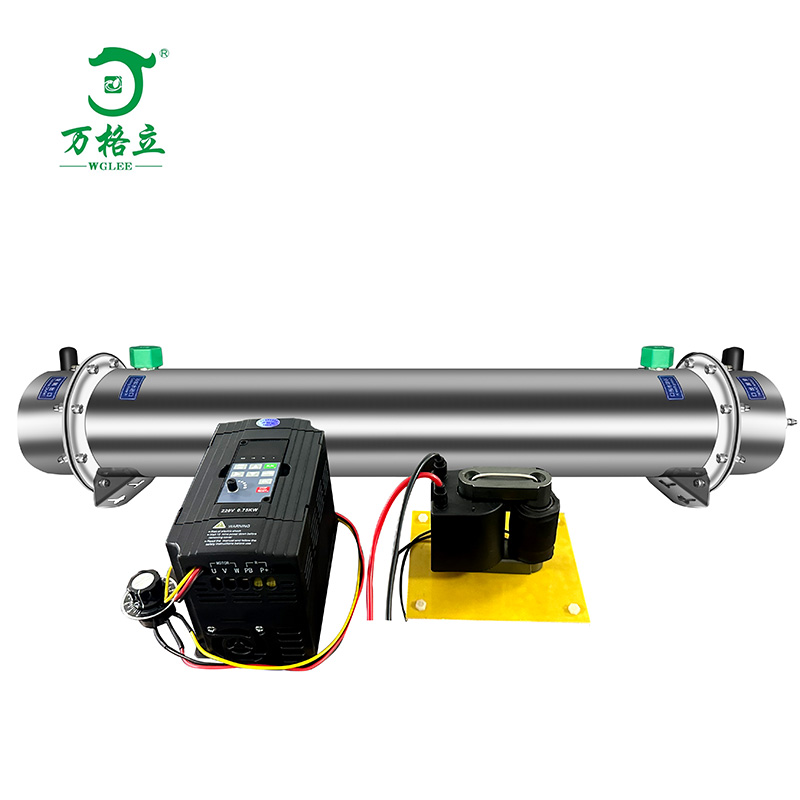

Description of product structure:

-------------------------------------------------------------------------------

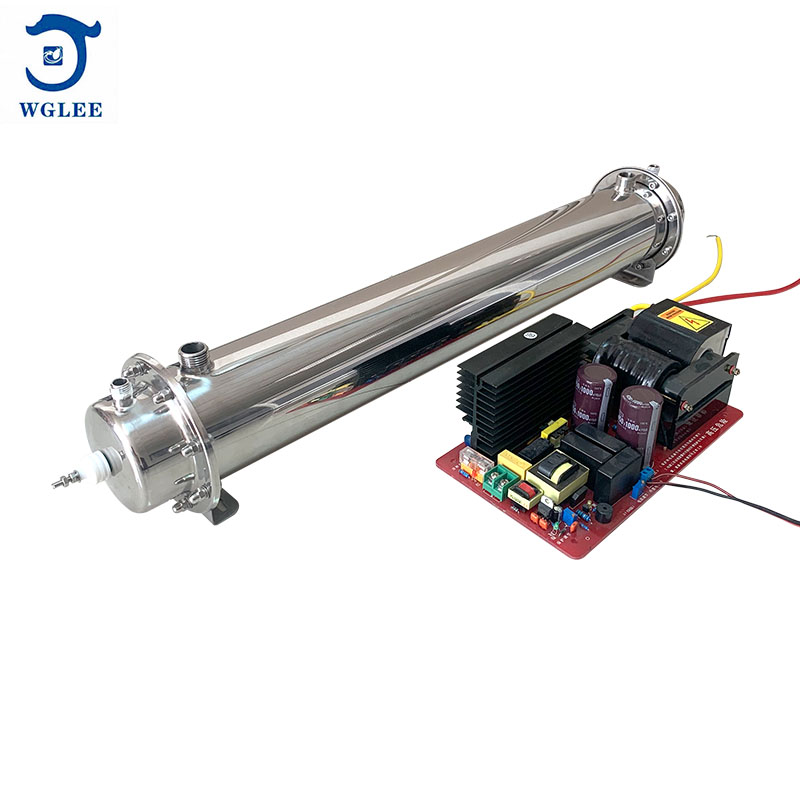

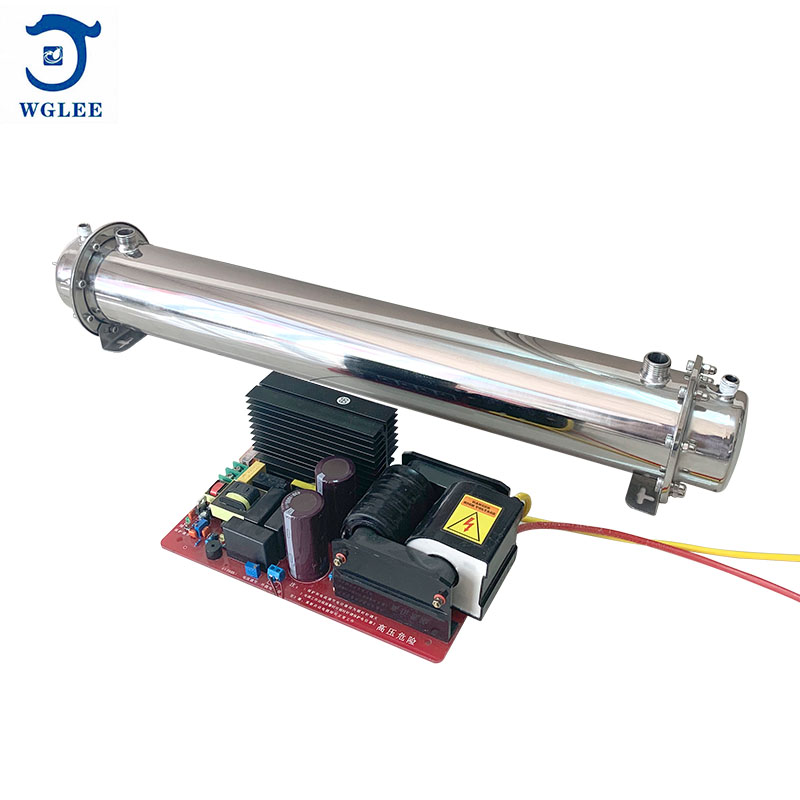

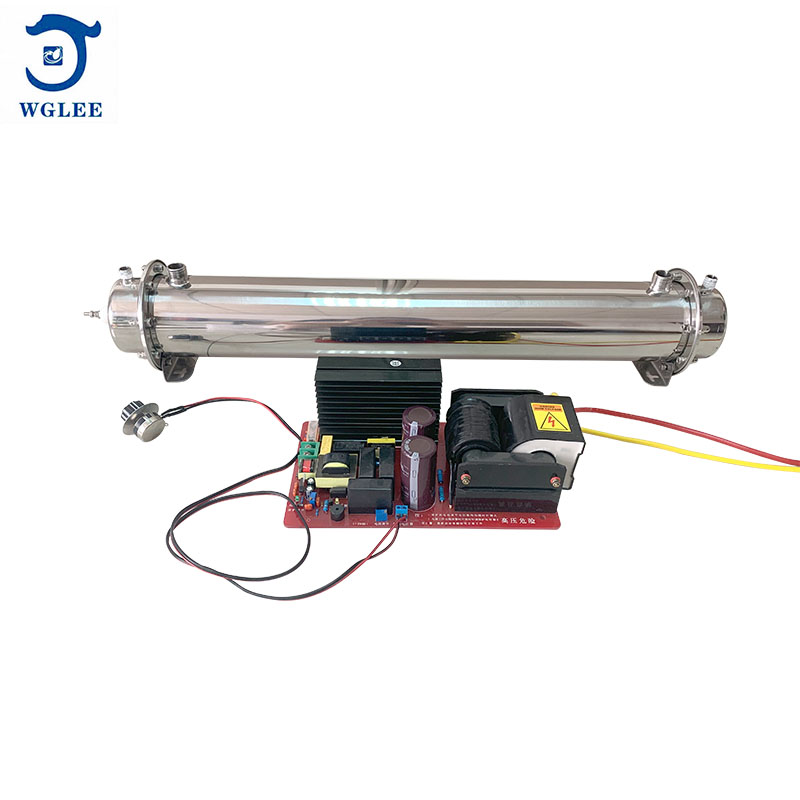

1、50G/H ozone generator accessories include: stainless steel ozone tube and high voltage adjustable power supply.

2、The composition and characteristics of the ozone tube: the inner electrode 316 L stainless steel, the outer electrode 316 L stainless steel tube, the dielectric material is more than 99.99% silica quartz control, pressure 0.4 MPA, quartz tube generator is mainly characterized by high dielectric constant, good dielectric toughness in transit is not easy to break, low thermal expansion coefficient. Normal service life is generally more than 30,000 hours.

3、The composition and characteristics of high voltage power supply: vacuum epoxy high voltage package; FR4 circuit board PCB, short circuit, open circuit, overcurrent protection, power adjustable, normal service life of more than 8 K hours.

4、Equipment advantages: the ozone tube shell is 304 stainless steel material, precision assembly, ozone production, high concentration, long life, the shell is not charged, can be touched by hand, not easy to damage during transportation.

note ** drive power identification "N""L" port is 220 V power supply input line, yellow, red is high voltage output, red line connection occurs inside tube electrode, yellow line connection occurs tube metal shell.

Description of equipment use

-------------------------------------------------------------------------------

FW-50G ozone generator accessories are the main core components of ozone machine, gas supply can be used oxygen or air, can be used in the need of ozone sterilization or purification, the general use of space sterilization disinfection, deodorization, decolorization, all kinds of raw water sewage treatment.

Equipment installation instructions

-------------------------------------------------------------------------------

step 1: the high voltage power supply is installed on the insulation board, the ozone tube can be fixed directly on the chassis, the insulation board is fixed in the chassis, it needs to be noted: the high voltage power supply is more than 5 cm from the metal case shell (if the high voltage part is too close to the metal case shell, it may form high voltage eddy current which will affect the use or even damage), ensure that the cooling water inlet and outlet of the ozone tube are connected.

step 2: installation of air inlet and ozone outlet: the upper end of the ozone tube is the air inlet, the lower end is the ozone outlet, the material of the air guide tube of the air inlet can be used silica gel tube or PVC tube, and the air outlet is connected with the anti-oxidation tube (tetrafluorine tube, fluorine hose, etc.), which requires no air leakage. The gas entering the inlet of the ozone tube, whether oxygen or air, must ensure that the gas is clean and dry, temperature must not be higher than 45℃, humidity must not be greater than 70% RH..

Step 3: check the line: after the high-voltage line and the high-voltage ground wire are connected to the ozone pipe, the high-voltage line should be connected at the shortest distance as far as possible. When the fittings are out of the factory, the high-voltage line is about 30 CM long. When installing, the high-voltage line can be cut short according to the position of the installation, so as to avoid the high-voltage line touching other lines or objects in the chassis. If conditions are available, the high-voltage line can be used on the silicone tube sleeve with an inner diameter of 8 MM to enhance insulation.

Use of considerations

-------------------------------------------------------------------------------

1、After receiving the goods, please check whether the equipment is damaged or missing spare parts first, make sure that there is no problem before putting into the installation and use link.

2、During the installation of the components, please take care of the light and light, to avoid falling.

3、After the equipment is installed, check the gas circuit and circuit again before power on, make sure it is correct and then power on.

4、Equipment installation to ensure that high voltage no leakage to the case housing, high voltage danger.

5、It is forbidden to use in flammable and explosive places.

6、Ensure that the air cooling is good convection heat dissipation, the ozone tube working temperature must not be higher than 60℃.

7、Ozone export ozone concentration is high, the human body do not contact ozone for a long time, put into the confined space of ozone can stop working machine 20 minutes before entering.

8. the equipment is used in water treatment, please make sure that the air-water mixing device does not have water reflux into the gas path of the ozone tube, otherwise it will cause high voltage short circuit.

Daily maintenance

-------------------------------------------------------------------------------

1、The equipment should be placed in a dry, ventilated and clean environment with ambient temperature between -7~40℃ and relative humidity less than 85% RH..

2、Equipment maintenance, need power off operation.

3、Regularly check the ventilation exhaust on the equipment, if there is more dust, please clean up and install back in place in time.

4、The equipment can work continuously for 24 hours, but please make sure the equipment heat dissipation and ventilation is good.
