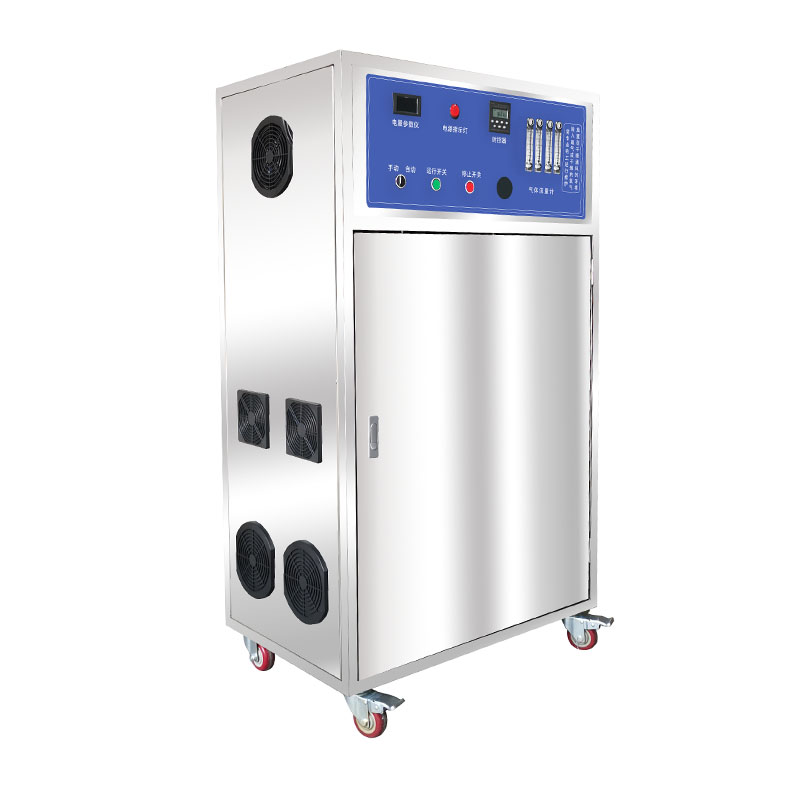

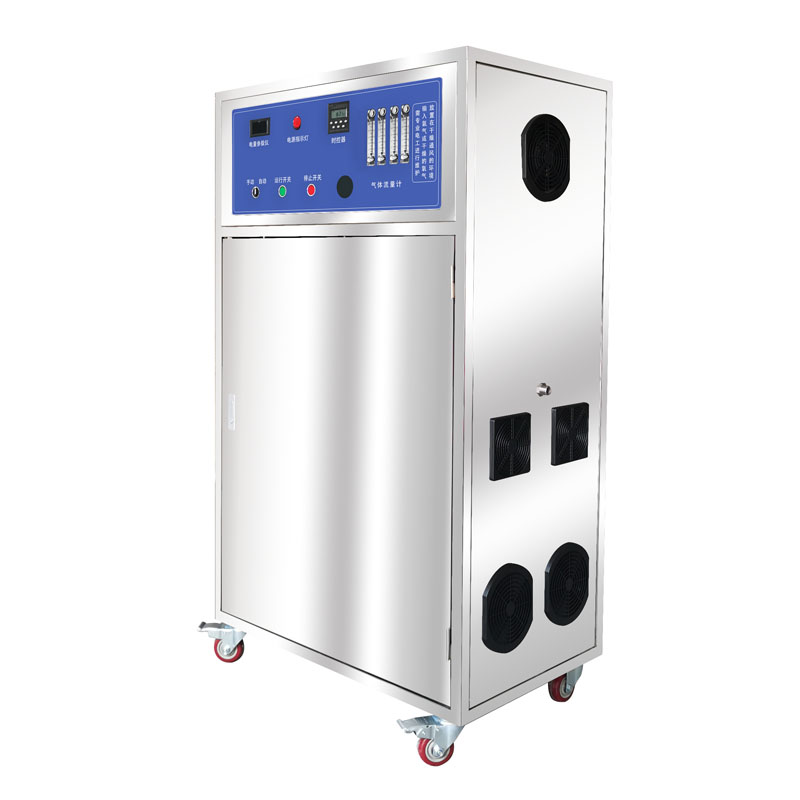

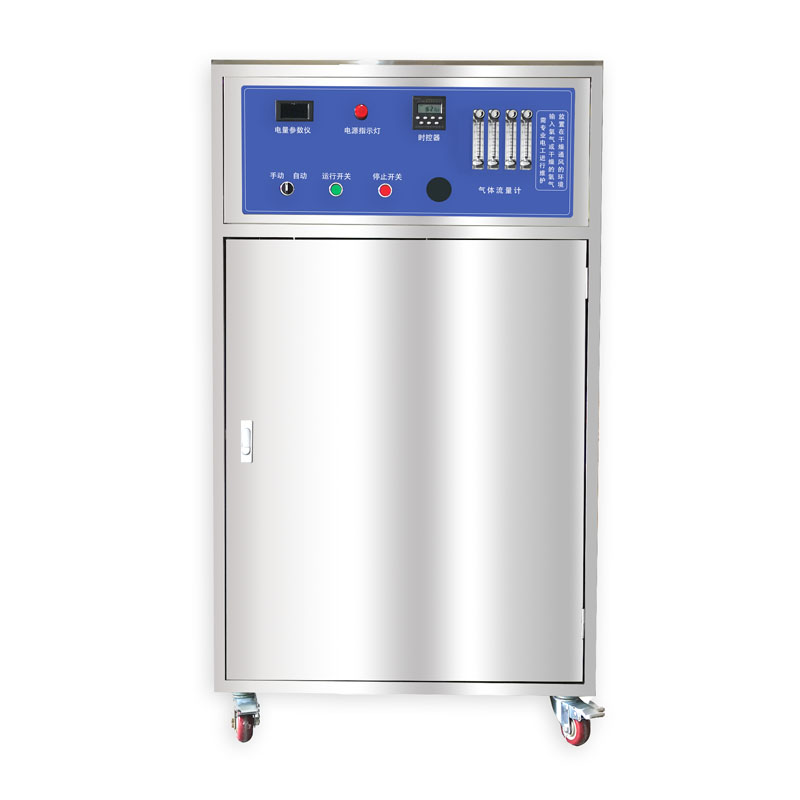

Product model: WGL-40L series

Product technical parameters

1. application area

PSA oxygen generator is favored by the majority of users because of its remarkable advantages, and it is widely used in environmental protection, medical treatment, biotechnology and other fields.

2. technical feature

Perfect fluency design, the optimal use of the effect;

Reasonable internal components, uniform airflow distribution, reduce the high-speed impact of the airflow;

Unique molecular sieve protection measures, prolong the service life of molecular sieve;

Simple operation, stable operation, high degree of automation, can be real unmanned operation;

Automatic interlocking oxygen exhaust device to ensure the oxygen quality of products;

3. Working principle and flow chart

Using the principle of PSA pressure change adsorption, the air is pressurized and pressurized, and the nitrogen molecules and oxygen molecules in the air are separated through molecular screening, oxygen retention and nitrogen discharge. Through the power supply at room temperature, it can be continuously separated from the air to produce high concentration of oxygen under rated oxygen flow conditions.

4. Molecular sieve material

Using lithium low silicon oxygen molecular sieve (oxygen purity 93% ± 2), has the advantages of high oxygen purity, high yield ratio, small mechanical wear, long life and so on.

5. life length

Oxygen purity is attenuated to 85% ± 3 after 6,000 hours, to 80% ± 3 after 12,000 hours, and to 70% + 3 when oxygen concentration is not sufficient for use.

6. Environmental requirements for the use of the oxygen production system

1. Ambient temperature: 5℃ ~40℃

2. relative humidity: 80%

3. Atmospheric pressure: 86 kPa ~ 106 kPa

4. the surrounding environment without corrosive gas and strong magnetic field
