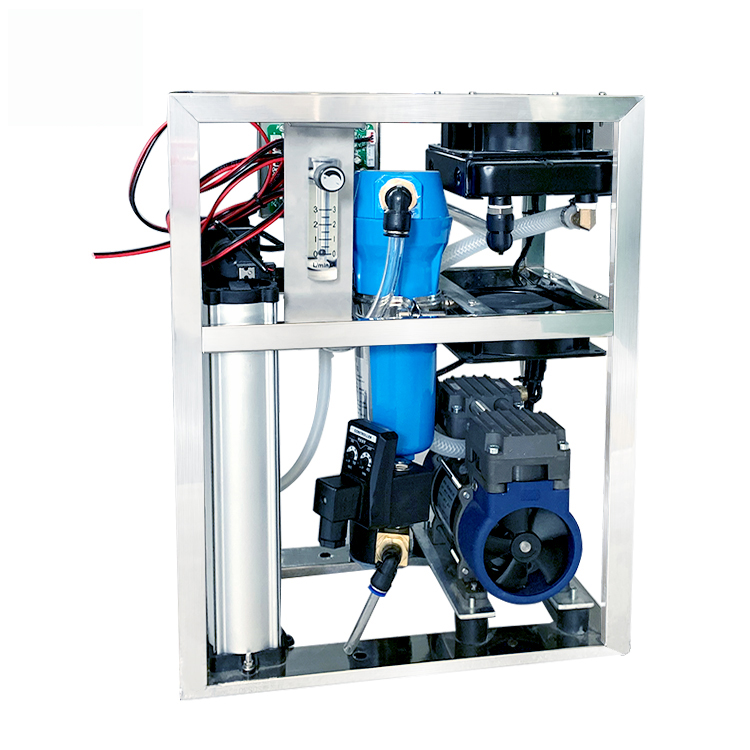

Main Technical Specifications for 5L Model
1. Product Model WGL-5L
2. Oxygen Output 5L/MIN
3. Compressed Air Consumption 75L/min Pressure: >0.2MPa
4. Oxygen Purity ≥93%
5. Oxygen Outlet Pressure 60Kpa
6. Oxygen Generator Power Supply 220V/50Hz Power ≤400W
7. Oxygen Generator Dimensions 340*210*455mm
8. Product Weight: 10.5kg
I. Application Fields
PSA oxygen generators are favored by a wide range of users due to their significant advantages. They are widely used in fields such as metallurgical combustion support, chemical industry, environmental protection, building materials, light industry, healthcare, aquaculture, biotechnology, and wastewater treatment.
II. Technical Features
Optimized flow path design for superior performance;
Reasonable internal components ensure uniform gas distribution and reduce high-speed airflow impact;
Special molecular sieve protection measures extend its service life;
Easy operation, stable running, high automation level, enabling unmanned operation;
Automatic interlock oxygen venting device ensures product oxygen quality;
III. Working Principle
Utilizing the PSA (Pressure Swing Adsorption) principle, the air is pressurized and undergoes pressure cycling. Passing through molecular sieves, nitrogen molecules and oxygen molecules in the air are separated.
Oxygen is retained, while nitrogen is discharged. Upon connecting to power at room temperature, high-concentration oxygen can be continuously separated from the air under rated flow conditions.
IV. Molecular Sieve Material
Lithium-type low-silica oxygen production molecular sieve is used (oxygen production purity 93%±2), featuring high oxygen purity, high yield rate, low mechanical wear, and long service life.
V. Service Life
After 6000 hours of use, oxygen purity decays to 85%±3. After 12000 hours, oxygen purity decays to 80%±3. After
20000 hours, oxygen purity decays to 70%±3. When the oxygen concentration is insufficient for supply, the internal molecular sieve needs replacement.
VI. Operating Environment Requirements for Oxygen Generation System
1. Ambient Temperature: 5℃ ~ 40℃
2. Relative Humidity: ≤ 80%
3. Atmospheric Pressure: 86 kPa ~ 106kPa
4. No corrosive gases or strong magnetic fields in the surrounding environment.
Main Technical Specifications for 10L Model
1. Product Model WGL-10L
2. Oxygen Output 10L/MIN
3. Compressed Air Consumption 0.11Nm³ /min Pressure: >0.22MPa
4. Oxygen Purity ≥93%
5. Oxygen Outlet Pressure 80-100Kpa
6. Oxygen Generator Power Supply 220V/50Hz Power ≤700W
7. Oxygen Generator Dimensions 400*300*500mm
8. Product Weight: 18kg
I. Application Fields
PSA oxygen generators are favored by a wide range of users due to their significant advantages. They are widely used in fields such as environmental protection, healthcare, aquaculture, and biotechnology.
II. Technical Features
Optimized flow path design for superior performance;
Reasonable internal components ensure uniform gas distribution and reduce high-speed airflow impact;
Special molecular sieve protection measures extend its service life;
Easy operation, stable running, high automation level, enabling unmanned operation;
Automatic interlock oxygen venting device ensures product oxygen quality;
III. Working Principle
Utilizing the PSA (Pressure Swing Adsorption) principle, the air is pressurized and undergoes pressure cycling. Passing through molecular sieves, nitrogen molecules and oxygen molecules in the air are separated.
Oxygen is retained, while nitrogen is discharged. Upon connecting to power at room temperature, high-concentration oxygen can be continuously separated from the air under rated flow conditions.
IV. Molecular Sieve Material
Lithium-type low-silica oxygen production molecular sieve is used (oxygen production purity 93%±2), featuring high oxygen purity, high yield rate, low mechanical wear, and long service life.
V. Service Life
After 6000 hours of use, oxygen purity decays to 85%±3. After 12000 hours, oxygen purity decays to 80%±3. After
20000 hours, oxygen purity decays to 70%±3. When the oxygen concentration is insufficient for supply, the internal molecular sieve needs replacement.
VI. Operating Environment Requirements for Oxygen Generation System
1. Ambient Temperature: 5℃ ~ 40℃
2. Relative Humidity: ≤ 80%
3. Atmospheric Pressure: 86 kPa ~ 106kPa
4. No corrosive gases or strong magnetic fields in the surrounding environment.
