Technical parameters

-----------------------------------------------------------------------------

Name :20 G/H Ozone generator fittings (power supply + ozone tube)

Model: KS-20G

Operating voltage: AC220V/50HZ

Power :10-180 W adjustable

Cooling mode: air cooling

Supply: Dry and clean oxygen or air

Ozone production :20 G/H

Ozone concentration: oxygen source 70-110 mg/L; air source 8-12 mg/L

intake: oxygen 4-5 L/min air 40-45 L/min

Working environment temperature :-7~45℃

 Working environment humidity :≤85% RHShape Size: Ozone Tube Size (Length * Width * Height):310*102*102 mm Power Size :198*98*68 mm

Net weight :3.3 KG

Gas nozzle size :φ10*6mm pagoda joint

 mounting dimensions: power mounting hole spacing :84*180 mm, aperture :φ4.5mm.:

Ozone tube mounting hole spacing :91*130 mm, aperture :φ4.2mm:

Description of product structure:

-------------------------------------------------------------------------------

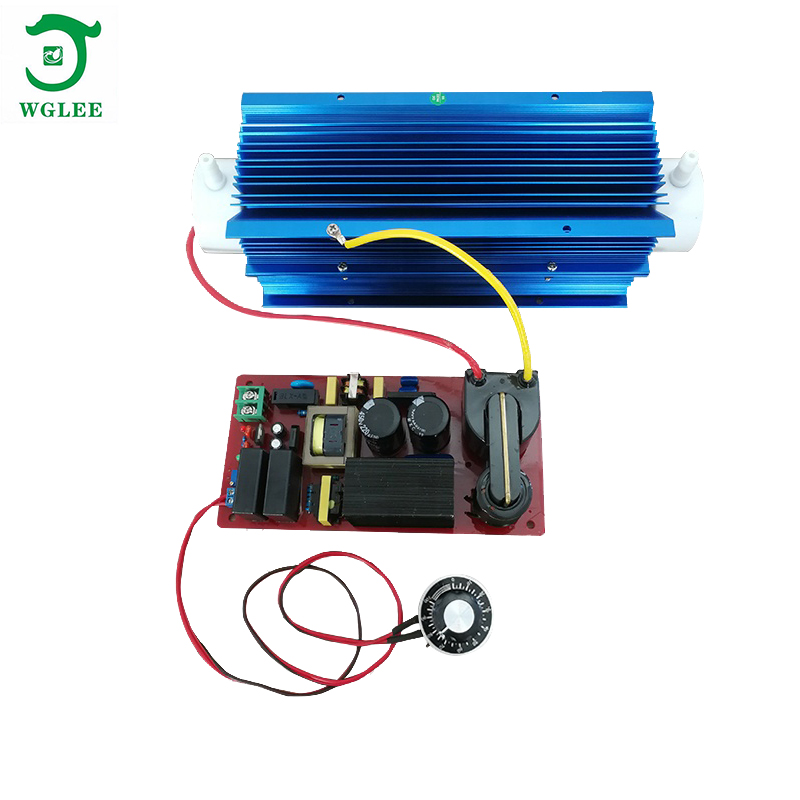

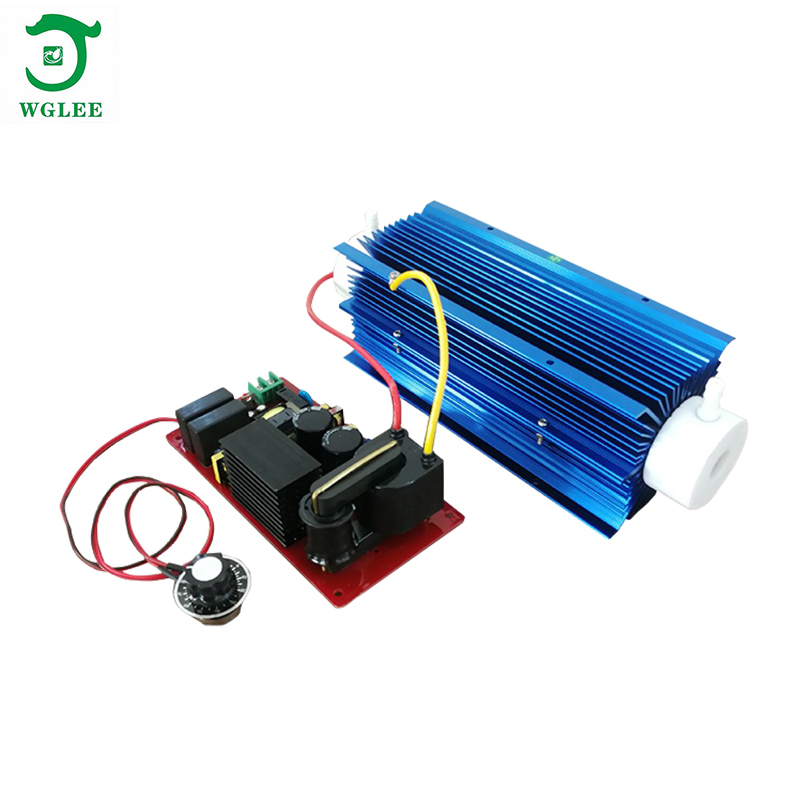

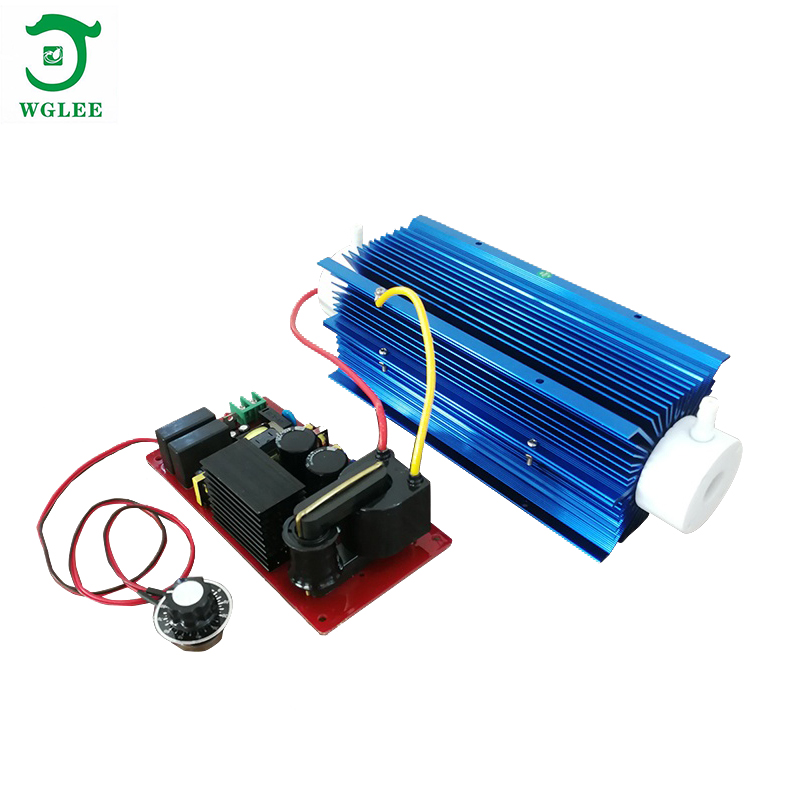

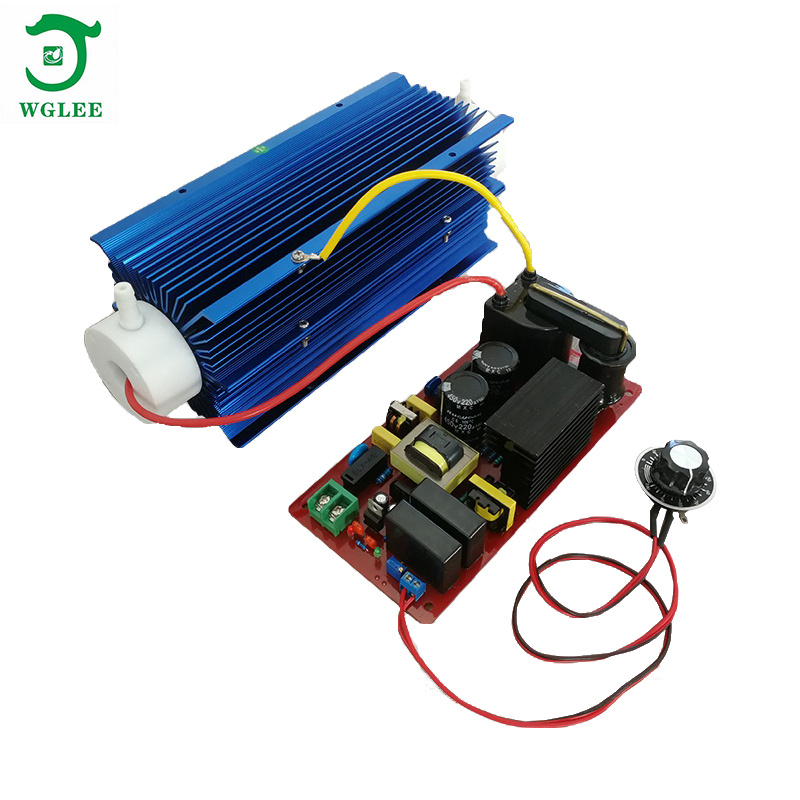

1、20G/H ozone generator accessories include: ozone tube and high voltage adjustable power supply.

2、The composition and characteristics of the ozone tube: internal electrode 316 L stainless steel, external electrode aluminum alloy heat sink, dielectric material is more than 99.7% of silica quartz control, PTFE and fluoro-gel seal from the combination of the original, external electrode air-cooled, quartz tube generator is mainly characterized by high dielectric constant, good dielectric toughness in transit is not easy to break, low thermal expansion coefficient, pressure 0.3 MPA.. Normal service life is generally more than 20,000 hours.

3、Structure and characteristics of high voltage power supply: vacuum epoxy high voltage package; FR4 circuit board PCB, short circuit, open circuit, overcurrent protection, power adjustable, normal service life of more than 18000 hours.

Description of equipment use

-------------------------------------------------------------------------------

KS-20G ozone generator accessories are the main core components of ozone machine, gas supply can be used oxygen or air, can be used in the need of ozone sterilization or purification, the general use of space sterilization disinfection, deodorization, decolorization, all kinds of raw water sewage treatment.

Equipment installation instructions

-------------------------------------------------------------------------------

Step 1: The high voltage power supply and the ozone tube are installed on the insulation board, the insulation board is fixed in the case, it should be noted: the ozone tube and the high voltage power supply are more than 5cm from the metal case shell (if the high voltage part is too close to the metal case shell, it may form high voltage eddy current which will affect the use or even damage), the ozone tube is installed in the convection air space on the case, ensure that the fan on the working time can blow to the radiator of the ozone tube, and ensure the external air cooling stability of the ozone tube.

step 2: installation of air inlet and ozone outlet: the air nozzle of the ozone tube does not separate into and out of the air nozzle, any end can be in and out, the material of the air inlet guide tube can be used silica gel tube or PVC tube, the air outlet is connected with the anti-oxidation tube (tetrafluorine tube, fluorine hose, etc.), and the air leakage is required. The gas entering the inlet of the ozone tube, whether oxygen or air, must ensure that the gas is clean and dry, temperature must not be higher than 45℃, humidity must not be greater than 70% RH..

Step 3: check the line: after the high-voltage line and the high-voltage ground wire are connected to the ozone pipe, the high-voltage line should be connected at the shortest distance as far as possible. When the fittings are out of the factory, the high-voltage line is about 30 CM long. When installing, the high-voltage line can be cut short according to the position of the installation, so as to avoid the high-voltage line touching other lines or objects in the chassis. If conditions are available, the high-voltage line can be used on the silicone tube sleeve with an inner diameter of 8 MM to enhance insulation. Welding the high voltage wire with spring plug into the middle of the ozone tube, any other wire line, do not close to the high voltage part (high voltage package, high voltage line, ozone tube), otherwise the high voltage may interfere with its normal use function.

Schematic diagram of the structure of the ozone tube:

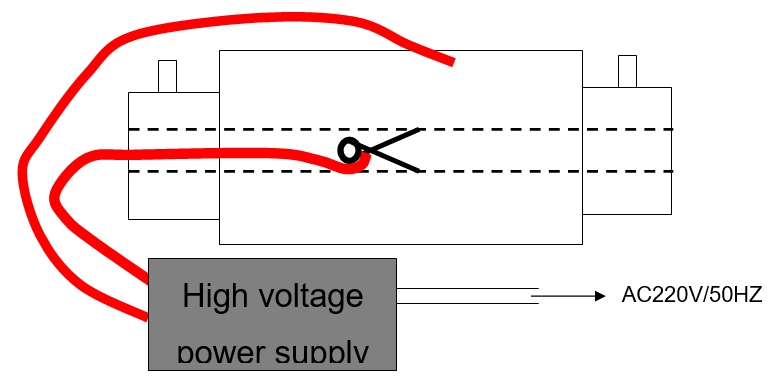

Connection mode of high voltage power supply and ozone discharge tube:

Between the two dashed lines is the inner empty part of the inner electrode stainless steel tube of the ozone tube, the high voltage wire welded with the clip spring is plugged into the inside, and the clip spring is plugged into the middle part of the ozone tube by using a screwdriver. Another high-voltage line is attached to the aluminum alloy radiator of the ozone discharge tube.(Note: Don't cross two high-voltage lines

Use of considerations

-------------------------------------------------------------------------------

1、After receiving the goods, please check whether the equipment is damaged or missing spare parts first, make sure that there is no problem before putting into the installation and use link.

2、During the installation of the components, please take care of the light and light, to avoid falling.

3、After the equipment is installed, check the gas circuit and circuit again before power on, make sure it is correct and then power on.

4、Equipment installation to ensure that high voltage no leakage to the case housing, high voltage danger.

5、It is forbidden to use in flammable and explosive places.

6、Ensure that the air cooling is good convection heat dissipation, the ozone tube working temperature must not be higher than 60℃.

7、Ozone export ozone concentration is high, the human body do not contact ozone for a long time, put into the confined space of ozone can stop working machine 20 minutes before entering.

8、Non-professional personnel do not open the case, the general electrician needs to consult professional maintenance personnel before opening the case.

9、When the equipment is used in water treatment, please make sure that the gas-water mixing device does not have water reflux into the gas path of the ozone tube, otherwise it will cause high voltage short circuit.

Daily maintenance

-------------------------------------------------------------------------------

1、The equipment should be placed in a dry, ventilated and clean environment with ambient temperature between -7~40℃ and relative humidity less than 85% RH..

2、Equipment maintenance, need power off operation.

3、Regularly check the ventilation exhaust on the equipment, if there is more dust, please clean up and install back in place in time.

4、The equipment can work continuously for 24 hours, but please make sure the equipment heat dissipation and ventilation is good.

5、Clean wet towel must be used after wring dry, do not splash water into the machine inside.
